Cartridge 40mm

40SR
40SF
40SMR
40SMF
40SR-3
40SF-3
40LR
40LF
40JR
40JF
40AR
40AF
40ER
40EF

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	60˚/30˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	7.5~8.5 ℓ/min
Flow Rate (at 2bar)	10.5~12 ℓ/min
Flow Rate (at 3bar)	13.5~15 ℓ/min
Endurance Test	500,000 cycle

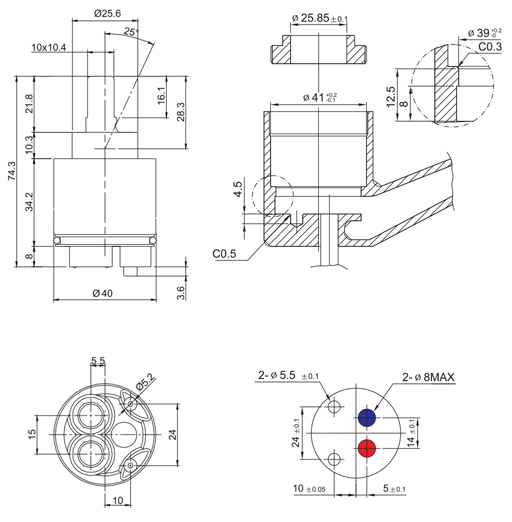

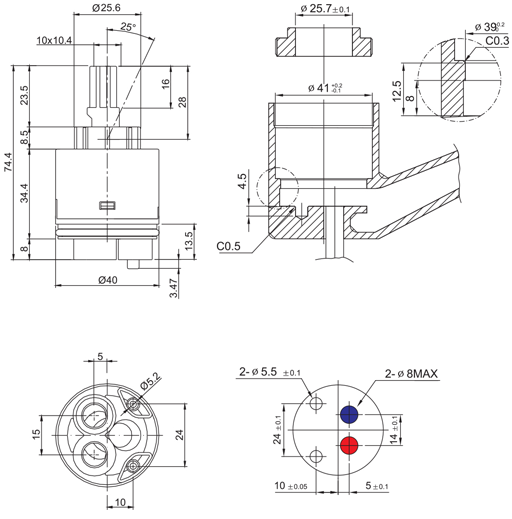

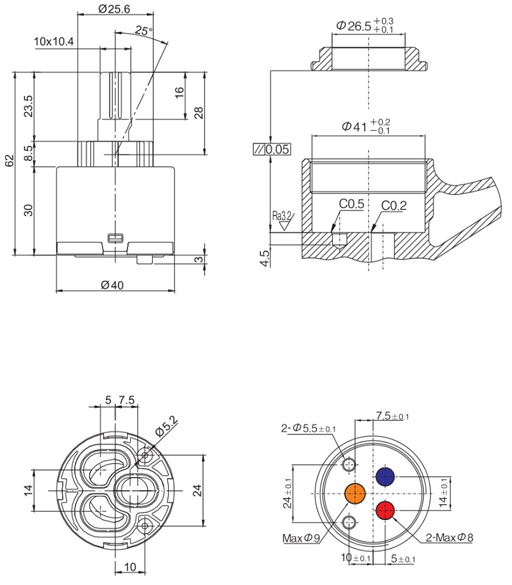

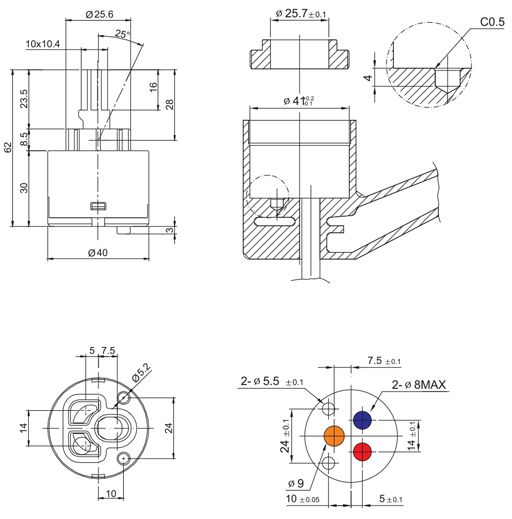

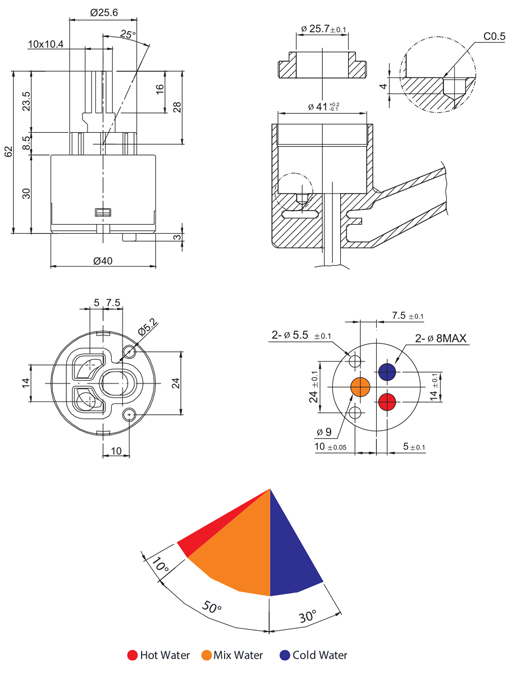

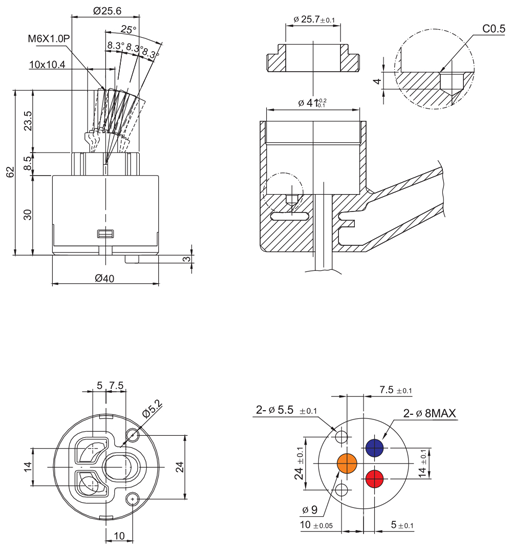

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	100˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	12~13 ℓ/min
Flow Rate (at 2bar)	17~19 ℓ/min
Flow Rate (at 3bar)	20~28 ℓ/min
Endurance Test	500,000 cycle

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	100˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	12~13 ℓ/min
Flow Rate (at 2bar)	17~19 ℓ/min
Flow Rate (at 3bar)	20~28 ℓ/min
Endurance Test	500,000 cycle

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	100˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	16~20 ℓ/min
Flow Rate (at 2bar)	23~31 ℓ/min
Flow Rate (at 3bar)	31~37 ℓ/min
Endurance Test	500,000 cycle

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	100˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	12~13 ℓ/min
Flow Rate (at 2bar)	17~19 ℓ/min
Flow Rate (at 3bar)	20~28 ℓ/min
Endurance Test	500,000 cycle

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	100˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	12~13 ℓ/min
Flow Rate (at 2bar)	17~19 ℓ/min
Flow Rate (at 3bar)	20~28 ℓ/min
Endurance Test	500,000 cycle

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	100˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	12~13 ℓ/min
Flow Rate (at 2bar)	17~19 ℓ/min
Flow Rate (at 3bar)	20~28 ℓ/min
Endurance Test	500,000 cycle

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	100˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	12~13 ℓ/min
Flow Rate (at 2bar)	17~19 ℓ/min
Flow Rate (at 3bar)	20~28 ℓ/min
Endurance Test	500,000 cycle

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	100˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	12~13 ℓ/min
Flow Rate (at 2bar)	17~19 ℓ/min
Flow Rate (at 3bar)	20~28 ℓ/min
Endurance Test	500,000 cycle

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	100˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	12~13 ℓ/min
Flow Rate (at 2bar)	17~19 ℓ/min
Flow Rate (at 3bar)	20~28 ℓ/min
Endurance Test	500,000 cycle

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	100˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	12~13 ℓ/min
Flow Rate (at 2bar)	17~19 ℓ/min
Flow Rate (at 3bar)	20~28 ℓ/min
Endurance Test	500,000 cycle

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	110˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	12~13 ℓ/min
Flow Rate (at 2bar)	17~19 ℓ/min
Flow Rate (at 3bar)	20~28 ℓ/min
Endurance Test	500,000 cycle

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	110˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	12~13 ℓ/min
Flow Rate (at 2bar)	17~19 ℓ/min
Flow Rate (at 3bar)	20~28 ℓ/min
Endurance Test	500,000 cycle

Dimensions (in mm)

PRODUCT IMAGE

PRODUCT SPECIFICATION

Max. Opening Angle	25˚
Max. Turning Angle	60˚/30˚
Nut Torque	10~11Nm
Water Resistance Pressure	Max. 35bar
Working Torque	Max. 0.5 Nm
Max. Temperature	90 ˚C
Max. Noise Level	15~18db
Flow Rate (at 1bar)	9~10 ℓ/min
Flow Rate (at 2bar)	11~13 ℓ/min
Flow Rate (at 3bar)	14~16 ℓ/min
Endurance Test	500,000 cycle

Dimensions (in mm)
