Cartridge
Cartridge 33mm
PRODUCT IMAGE
PRODUCT SPECIFICATION
| Max. Opening Angle |
23˚ |
| Max. Turning Angle |
45˚/45˚ |
| Nut Torque |
10~11Nm |
| Water Resistance Pressure |
Max. 35bar |
| Working Torque |
Max. 0.5 Nm |
| Max. Temperature |
90 ˚C |
| Max. Noise Level |
15~18db |
| Flow Rate (at 1bar) |
8.0~9.0 ℓ/min |
| Flow Rate (at 2bar) |
13.0~14.0 ℓ/min |
| Flow Rate (at 3bar) |
17.0~18.0 ℓ/min |
| Endurance Test |
50,000 cycle |

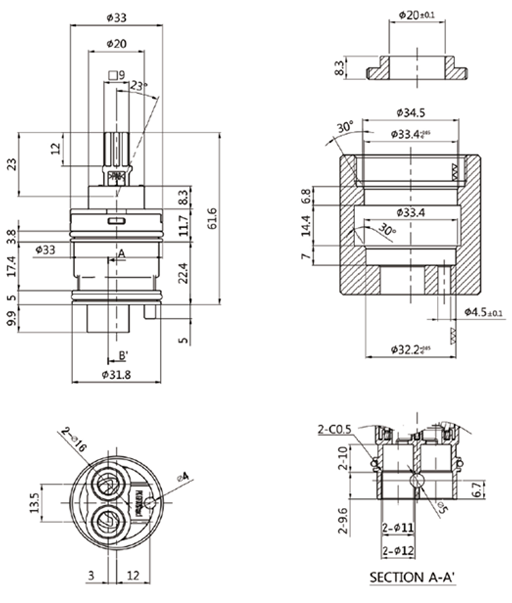

Dimensions (in mm)
PRODUCT IMAGE
PRODUCT SPECIFICATION
| Max. Opening Angle |
23˚ |
| Max. Turning Angle |
90˚ |
| Nut Torque |
10~11Nm |
| Water Resistance Pressure |
Max. 35bar |
| Working Torque |
Max. 0.5 Nm |
| Max. Temperature |
90 ˚C |
| Max. Noise Level |
15~18db |
| Flow Rate (at 1bar) |
7.5~8.5 ℓ/min |
| Flow Rate (at 2bar) |
11.0~12.0 ℓ/min |
| Flow Rate (at 3bar) |
14.0~15.0 ℓ/min |
| Endurance Test |
500,000 cycle |
Dimensions (in mm)
