THERMOSTATIC Plastic
PRODUCT IMAGE
![](/images/thermostatic/th100p.png)
PRODUCT SPECIFICATION
Turning Angle | 330˚ |
---|---|
Temperature range | 20-50 ˚C |
Temperature stop | 38˚C or 40˚C |
Inlet water supply temperature | Hot water 70˚C , Cold water 15˚C |
Outlet water temperature adjusted on 38˚C | 38˚C±1.5˚C |
Outlet flow rate adjusted on 38˚C | 20 ℓ/min (3bar) |
Operating pressure | 0.5 ~6 bar(0.05~0.6 Mpa) |
Recommend Pressure | 1~5 bar(0.1~0.5 Mpa) |
Life cycle | 100,000 cycle |

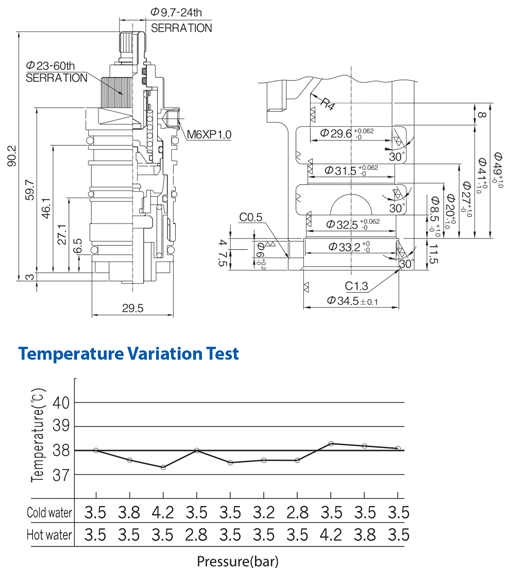

Dimensions (in mm)
![](/images/thermostatic/th100p_1.png)
