> Products > 阀芯
阀芯
黄铜阀芯
PRODUCT IMAGE
PRODUCT SPECIFICATION
| Max. Opening Angle |
90˚ |
| Nut Torque |
10~11Nm |
| Water Resistance Pressure |
Max. 50bar |
| Working Torque |
Max. 0.5 Nm |
| Max. Temperature |
90 ˚C |
| Max. Noise Level |
15~18db |
| Flow Rate (at 1bar) |
15~18 ℓ/min |
| Flow Rate (at 2bar) |
23~25 ℓ/min |
| Flow Rate (at 3bar) |
28~32 ℓ/min |
| Endurance Test |
500,000 cycle |

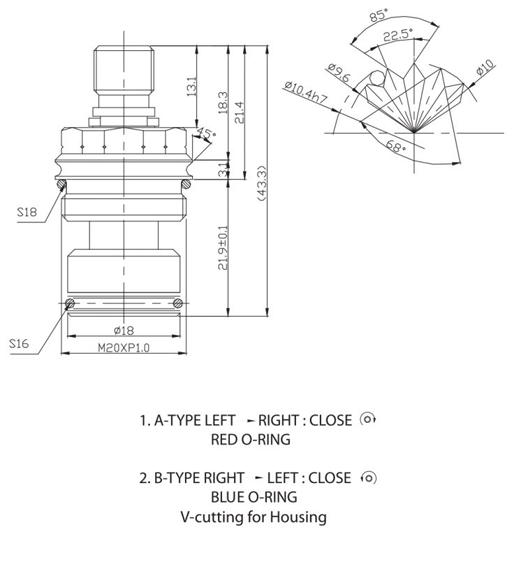

Dimensions (in mm)
PRODUCT IMAGE
PRODUCT SPECIFICATION
| Max. Opening Angle |
90˚ |
| Nut Torque |
10~11Nm |
| Water Resistance Pressure |
Max. 50bar |
| Working Torque |
Max. 0.5 Nm |
| Max. Temperature |
90 ˚C |
| Max. Noise Level |
15~18db |
| Flow Rate (at 1bar) |
15~18 ℓ/min |
| Flow Rate (at 2bar) |
23~25 ℓ/min |
| Flow Rate (at 3bar) |
28~32 ℓ/min |
| Endurance Test |
500,000 cycle |

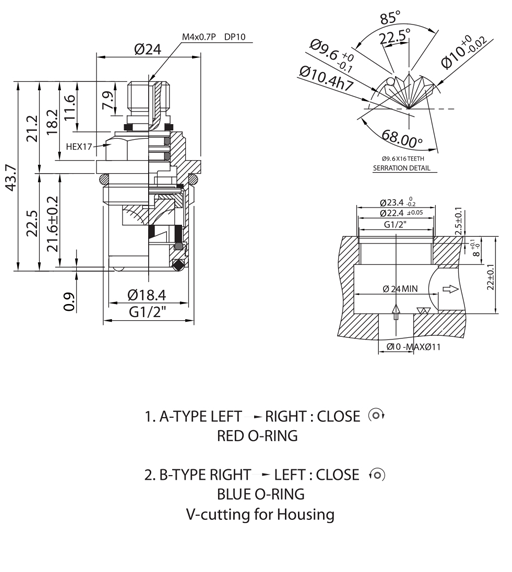

Dimensions (in mm)
PRODUCT IMAGE
PRODUCT SPECIFICATION
| Max. Opening Angle |
90˚ |
| Nut Torque |
10~11Nm |
| Water Resistance Pressure |
Max. 50bar |
| Working Torque |
Max. 0.5 Nm |
| Max. Temperature |
90 ˚C |
| Max. Noise Level |
15~18db |
| Flow Rate (at 1bar) |
15~18 ℓ/min |
| Flow Rate (at 2bar) |
23~25 ℓ/min |
| Flow Rate (at 3bar) |
28~32 ℓ/min |
| Endurance Test |
500,000 cycle |

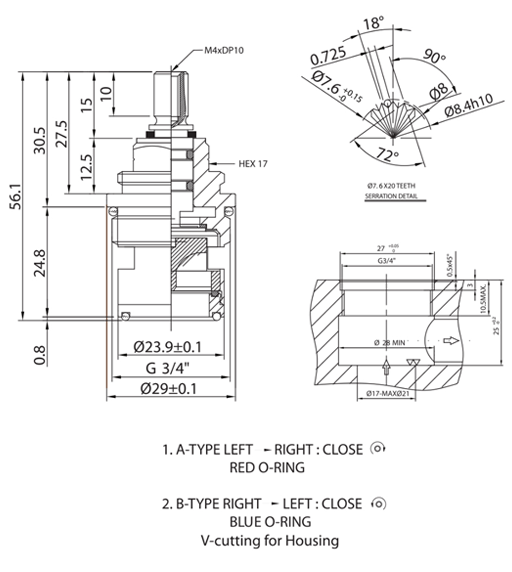

Dimensions (in mm)
PRODUCT IMAGE
PRODUCT SPECIFICATION
| Max. Opening Angle |
90˚ |
| Nut Torque |
10~11Nm |
| Water Resistance Pressure |
Max. 50bar |
| Working Torque |
Max. 0.5 Nm |
| Max. Temperature |
90 ˚C |
| Max. Noise Level |
15~18db |
| Flow Rate (at 1bar) |
9~10 ℓ/min |
| Flow Rate (at 2bar) |
13~14 ℓ/min |
| Flow Rate (at 3bar) |
17~18 ℓ/min |
| Endurance Test |
500,000 cycle |

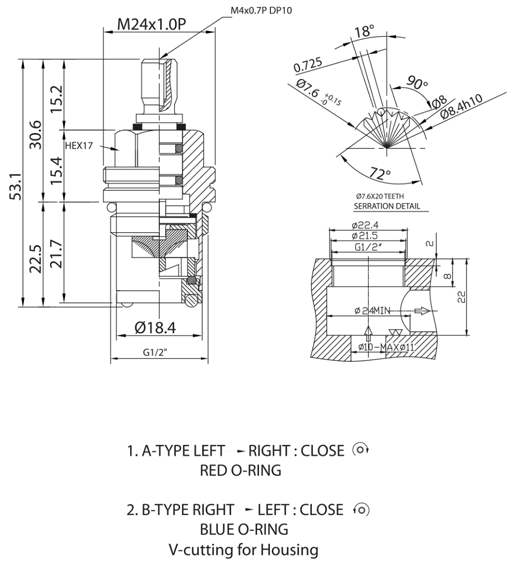

Dimensions (in mm)
PRODUCT IMAGE
PRODUCT SPECIFICATION
| Max. Opening Angle |
90˚ |
| Nut Torque |
10~11Nm |
| Water Resistance Pressure |
Max. 50bar |
| Working Torque |
Max. 0.5 Nm |
| Max. Temperature |
90 ˚C |
| Max. Noise Level |
15~18db |
| Flow Rate (at 1bar) |
23~25 ℓ/min |
| Flow Rate (at 2bar) |
31~33 ℓ/min |
| Flow Rate (at 3bar) |
40~48 ℓ/min |
| Endurance Test |
500,000 cycle |
Dimensions (in mm)
